bisectie_f4.mws

Metoda bisectiei - Simulare:  f4(x) = (x+1)^3 , intervalul initial [-2, 1]

In cazul procedurilor desen_bisectie, animatie_bisectie si animatie_bisectie1, listele afisate sunt listele mijoacelor c[n] ale intervalelor I[n] rezultate prin aplicarea metodei bisectiei.

In cazul procedurilor de desen_bisectie si animatie_desen_bisectie1, listele afisate sunt listele intervalelor I[n] rezultate prin aplicarea metodei bisectiei.

>    desen_bisectie(f4,-2,1,10^(-3));

[-1/2, -5/4, -7/8, -17/16, -31/32, -65/64, -127/128, -257/256, -511/512, -1025/1024, -2047/2048, -4097/4096, -8191/8192, -16385/16384]

[Maple Plot]

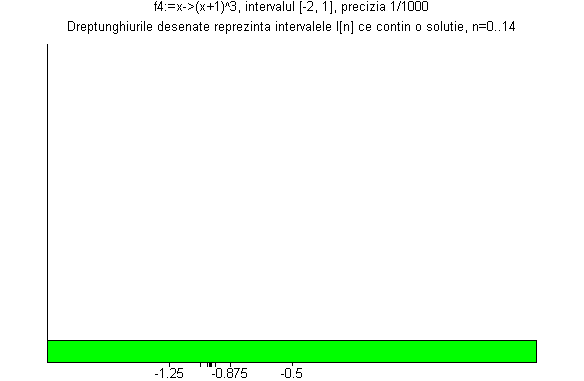

>    desen_bisectie1(f4,-2,1,10^(-3));

[-2, 1], [-2, -1/2], [-5/4, -1/2], [-5/4, -7/8], [-17/16, -7/8], [-17/16, -31/32], [-65/64, -31/32], [-65/64, -127/128], [-257/256, -127/128], [-257/256, -511/512], [-1025/1024, -511/512], [-1025/1024,...
[-2, 1], [-2, -1/2], [-5/4, -1/2], [-5/4, -7/8], [-17/16, -7/8], [-17/16, -31/32], [-65/64, -31/32], [-65/64, -127/128], [-257/256, -127/128], [-257/256, -511/512], [-1025/1024, -511/512], [-1025/1024,...

[Maple Plot]

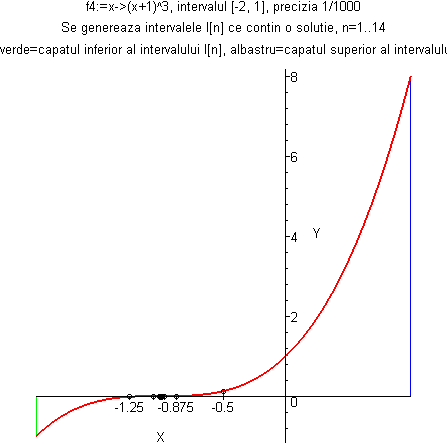

>    animatie_bisectie(f4,-2,1,10^(-3),5);

[-1/2, -5/4, -7/8, -17/16, -31/32, -65/64, -127/128, -257/256, -511/512, -1025/1024, -2047/2048, -4097/4096, -8191/8192, -16385/16384]

[Maple Plot]

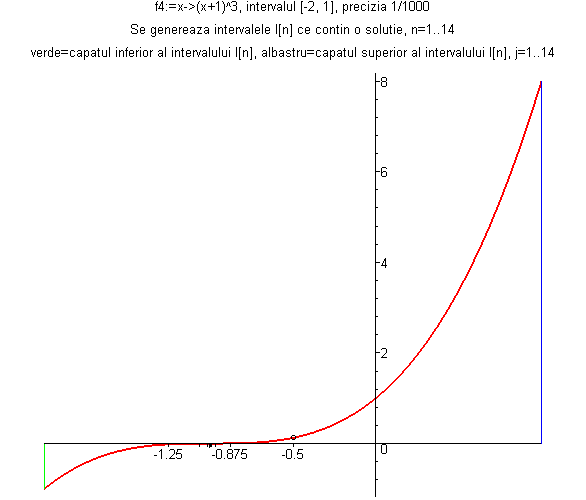

>    animatie_bisectie1(f4,-2,1,10^(-3),5);

[-1/2, -5/4, -7/8, -17/16, -31/32, -65/64, -127/128, -257/256, -511/512, -1025/1024, -2047/2048, -4097/4096, -8191/8192, -16385/16384]

[Maple Plot]

>    animatie_desen_bisectie1(f4,-2,1,10^(-3),5);

[-2, 1], [-2, -1/2], [-5/4, -1/2], [-5/4, -7/8], [-17/16, -7/8], [-17/16, -31/32], [-65/64, -31/32], [-65/64, -127/128], [-257/256, -127/128], [-257/256, -511/512], [-1025/1024, -511/512], [-1025/1024,...
[-2, 1], [-2, -1/2], [-5/4, -1/2], [-5/4, -7/8], [-17/16, -7/8], [-17/16, -31/32], [-65/64, -31/32], [-65/64, -127/128], [-257/256, -127/128], [-257/256, -511/512], [-1025/1024, -511/512], [-1025/1024,...

[Maple Plot]

Studenti: Marian-Silviu Talmacel,Oana-Adriana Basaraba, Cristian-Laurentiu Giorgi, Roxana-Elena Staniloiu (anul I, Ingineria Sistemelor)

Indrumator: conf. dr. Madalina Buneci

Universitatea Constatin Brāncusi din Tārgu-Jiu
